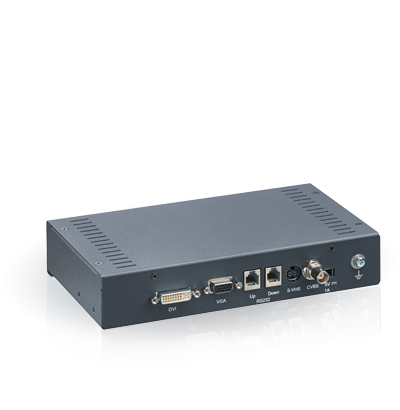

Analog-DVI Converter
The PDC0100 converts analog video to DVI format. The integrated Force Mode function supports unique analog input signals. With a range of accessories and high interconnectivity, the convertor allows maximum flexibility for integration into existing systems.
2 items
- Diagnostic
- Clinical Review
- Digital Mammography
- Surgical
- Quality Control
- Features
- Specifications
- Documents
- Graphics Boards
- QC Software & Tools Accessories
- Upgrades analog systems to digital video.
- Force Mode for tailoring the monitor to even the most specialized timing requirements.
- Output resolution 1280 x 1024
| Cabinet Color | Anthracite Gray |
|---|---|
| Interface Specifications | |
| Input Terminals |
DVI-I (digital: DVI, analog: RGB) x 1 D-Sub mini 15 pin (Separate, Composite, SoG) x 1 BNC (Composite, PAL, NTSC) x 1 4 pin mini DIN (S-Video) x 1 |
| Input Performance |
Digital: DVI-D (single link), max. 1600 x 1200, 60 Hz Analog: VGA, SVGA, XGA, SXGA, UXGA, PAL, NTSC Scanning Frequency: Analog 30 - 100 kHz, 50 - 100 Hz |
| Output Terminals | DVI-D x 1 |
| Output Performance | 1280 x 1024 (SXGA), 60 Hz |
| Communication Connector | RJ11 x 2 (Upstream, Downstream), Supported Signal: RS 232-Bus |
| Power | |
| Power Requirements | AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz |
| Power Consumption | 10 W |
| Physical Specifications | |
| Degree of Protection | IP20 |
| Net Weight | 850 g |
| Mechanical Adaption | injection nut M3 on each side (distance 31.8 mm) x 2 |
| Certifications & Standards (Please contact the EIZO subsidiary or distributor in your country for the latest information.) | EN60950, UL60950, CAN/CSA C22.2 No.950, EN 60601-1-2-B, FCC-A, RoHS, China RoHS, WEEE |
| Supplied Accessories | External power supply, signal cable (VGA - VGA, DVI - DVI), remote key pad with 30 m cable, Utility Disk (user's manual) |
| Warranty | Two Years |
| Dimension Drawing | JPG |
Brochures
 |
PDC0100
|
Manuals
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| PDC0100 User's manual | English | 1.42 MB |  |
| PDC0100 User's manual | German | 1.42 MB | |
